Leading Manufacturer for Fruit Vegetabe Meat Seafood Medicine Frozen Food Air Cooling Scroll Refrigeration Compressor Condensing Unit for Freezer

Short Description:

Bitzer Semi-closed Piston Condensing Unit5

Suitable for: Supermarket, Shopping mall, Cold storage, Freezer, Processing room, Laboratory, Cold storage logistics.

◾ 2hp-9hp, a large range to choose from
◾ Adopt international brand Bitzer original compressor, high efficiency and energy saving
◾ The whole unit or split unit can be selected according to the needs of the store (condenser and unit are integrated or separated)
◾ High quality components of world famous brands
◾ Effective air-cooled condenser which enables high energy efficiency ratio
◾ Compact structure; sturdy and durable; convenient to install
◾ Widely applicable and can be applied to refrigerants R22,R134a, R404a, R507a, etc.

Send email to us

Product Detail

Product Tags

All we do is always involved with our tenet ” Consumer initial, Trust first, devoting within the food stuff packaging and environmental defense for Leading Manufacturer for Fruit Vegetabe Meat Seafood Medicine Frozen Food Air Cooling Scroll Refrigeration Compressor Condensing Unit for Freezer, We now have skilled merchandise knowledge and rich experience on manufacturing. We always imagine your good results is our small business!
All we do is always involved with our tenet ” Consumer initial, Trust first, devoting within the food stuff packaging and environmental defense for Air Cooling and Condensing Unit, We honor ourselves as a company that comprises of a strong team of professionals who are innovative and well experienced in the international trading, business development and product advancement. Moreover, the company stays unique among its competitors due to its superior standard of quality in production, and its efficiency and flexibility in business support.

box type copeland scroll condensing units parameters

HP	KW	Condensing temperature(℃)	Evaporation temperature(℃)
HP	KW	Condensing temperature(℃)	-12	-10	-8	-5	0	5	10
2	Q	30	3.37	3.71	4.01	4.47	5.37	6.37	7.46
		40	3.04	3.33	3.61	4.04	4.89	5.80	6.89
		45	2.78	3.04	3.35	3.82	4.61	5.49	6.53
		50	2.52	2.76	3.10	3.61	4.32	5.18	6.18
	P	30	1.19	1.19	1.19	1.20	1.22	1.25	1.28
		40	1.45	1.45	1.45	1.47	1.49	1.51	1.52
		45	1.61	1.61	1.62	1.63	1.65	1.67	1.68
		50	1.78	1.78	1.78	1.80	1.82	1.84	1.85
2.5	Q	30	3.90	4.23	4.61	5.18	6.18	7.32	8.60
		40	3.52	3.85	4.17	4.66	5.61	6.70	7.93
		45	3.21	3.49	3.85	4.39	5.30	6.34	7.53
		50	2.90	3.14	3.53	4.13	4.99	5.99	7.13
	P	30	1.34	1.34	1.34	1.35	1.38	1.41	1.44
		40	1.64	1.64	1.64	1.65	1.67	1.70	1.72
		45	1.82	1.82	1.83	1.84	1.86	1.88	1.90
		50	2.01	2.01	2.01	2.03	2.05	2.07	2.08
3	Q	30	4.94	5.37	5.82	6.51	7.79	9.22	10.88
		40	4.42	4.85	5.26	5.89	7.08	8.46	9.98
		45	4.01	4.42	4.87	5.56	6.70	8.00	9.48
		50	3.61	3.99	4.48	5.23	6.32	7.55	8.98
	P	30	1.71	1.71	1.71	1.72	1.76	1.80	1.83
		40	2.10	2.09	2.09	2.11	2.14	2.18	2.20
		45	2.34	2.33	2.34	2.35	2.38	2.42	2.43
		50	2.58	2.58	2.58	2.60	2.63	2.66	2.67
4	Q	30	6.60	7.17	7.80	8.74	10.45	12.35	14.58
		40	5.94	6.46	7.03	7.89	9.50	11.31	13.40
		45	5.39	5.89	6.52	7.46	8.98	10.71	12.73
		50	4.85	5.32	6.00	7.03	8.46	10.12	12.07
	P	30	2.15	2.14	2.14	2.16	2.21	2.26	2.31
		40	2.64	2.64	2.64	2.66	2.70	2.74	2.77
		45	2.94	2.95	2.96	2.97	3.01	3.05	3.07
		50	3.25	3.26	3.27	3.29	3.33	3.36	3.38
5	Q	30	8.22	8.93	9.69	10.83	12.97	15.34	18.10
		40	7.36	8.03	8.73	9.79	11.78	14.06	16.67
		45	6.70	7.32	8.09	9.26	11.14	13.32	15.82
		50	6.03	6.60	7.46	8.74	10.50	12.59	14.96
	P	30	2.77	2.77	2.78	2.80	2.85	2.92	2.98
		40	3.40	3.40	3.41	3.42	3.48	3.53	3.56
		45	3.79	3.79	3.80	3.82	3.87	3.92	3.95
		50	4.17	4.18	4.19	4.21	4.26	4.31	4.33
6	Q	30	9.93	10.78	11.68	13.02	15.58	18.53	21.95
		40	8.98	9.79	10.62	11.88	14.20	16.91	20.05
		45	8.12	8.88	9.81	11.21	13.47	16.06	19.02
		50	7.27	7.98	9.01	10.55	12.73	15.20	18.00
	P	30	3.14	3.16	3.18	3.20	3.24	3.29	3.36
		40	3.90	3.92	3.93	3.95	3.98	4.00	4.04
		45	4.37	4.40	4.41	4.43	4.45	4.46	4.49
		50	4.84	4.87	4.88	4.90	4.91	4.92	4.94
7	Q	30	10.93	11.83	12.82	14.31	17.15	20.38	24.13
		40	9.88	10.74	11.65	13.02	15.63	18.62	22.04
		45	8.93	9.76	10.78	12.30	14.80	17.65	20.92
		50	7.98	8.79	9.91	11.59	13.97	16.67	19.81
	P	30	3.44	3.46	3.48	3.50	3.54	3.59	3.68
		40	4.27	4.29	4.31	4.33	4.35	4.38	4.43
		45	4.79	4.81	4.83	4.85	4.87	4.89	4.92
		50	5.31	5.33	5.35	5.37	5.39	5.39	5.41
9	Q	30	16.01	17.86	19.28	21.42	25.56	30.31
		45	12.76	14.25	15.37	17.05	20.29	23.97
		50	11.60	12.97	13.99	15.53	18.48	21.80
	P	30	5.37	5.42	5.46	5.51	5.62	5.75
		40	6.62	6.66	6.68	6.71	6.78	6.87
		45	7.44	7.47	7.48	7.51	7.55	7.61
		50	8.25	8.27	8.28	8.30	8.32	8.35

Long life
—With high efficient and long life copper-aluminum fin type heat exchanger.

Low noise
—Low noise and high efficient external rotor fan motor.
—With world famous brand compressor,small vibration,low noise and reliable operation.

Easy connection
—System with water-proof cable connection box for easy connection.

asdad (1)

box type copeland scroll condensing units parameters

asdad (3)
condensing (8)
condensing (9)

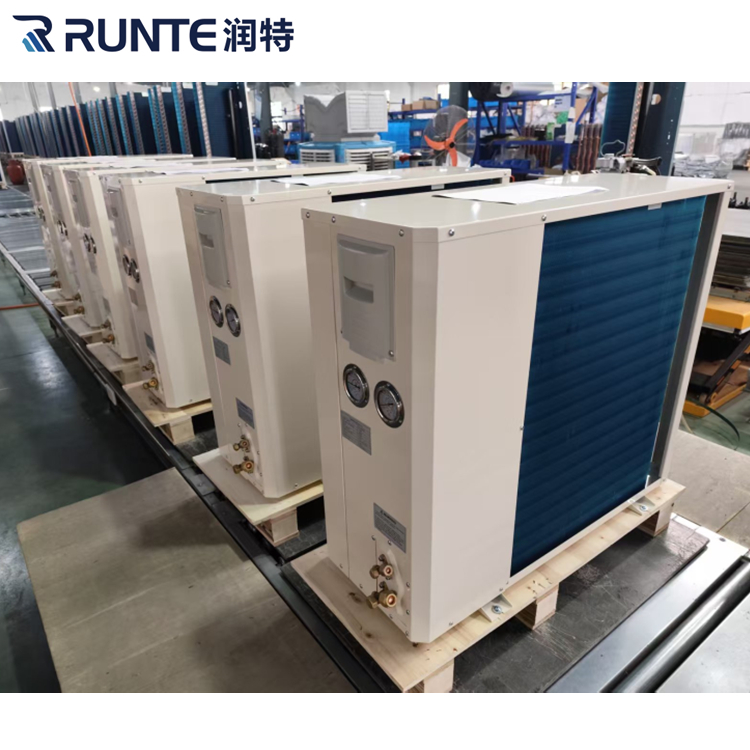

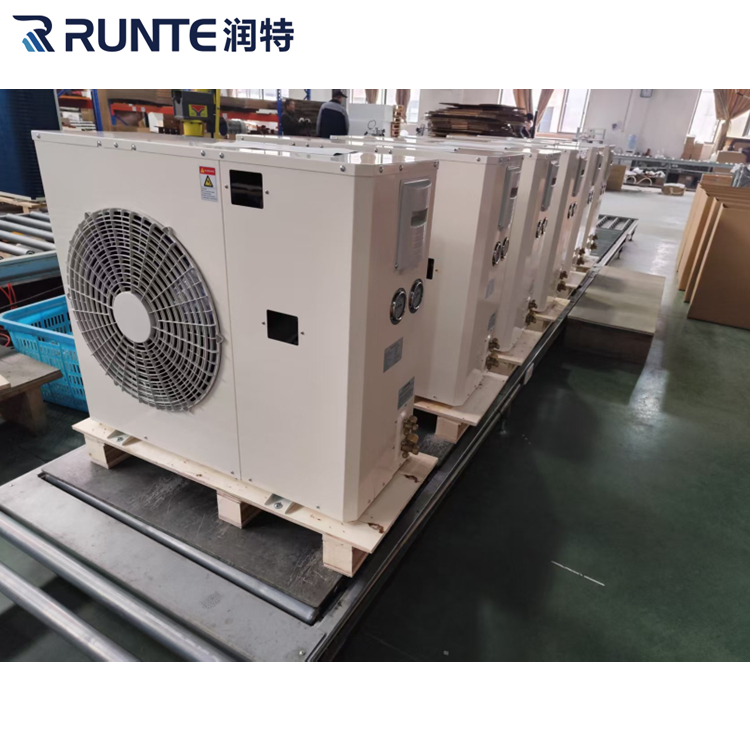

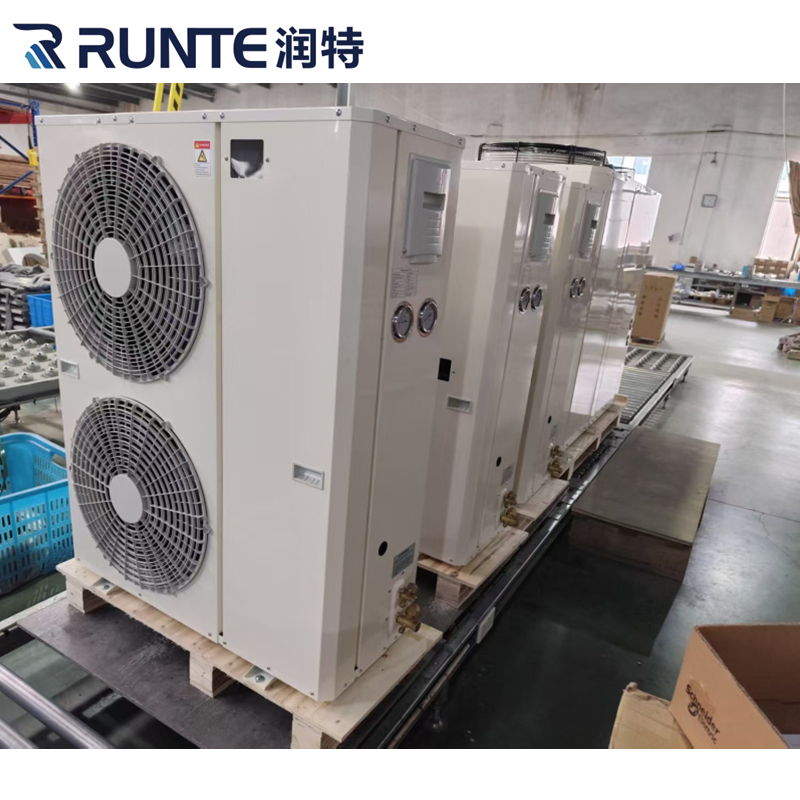

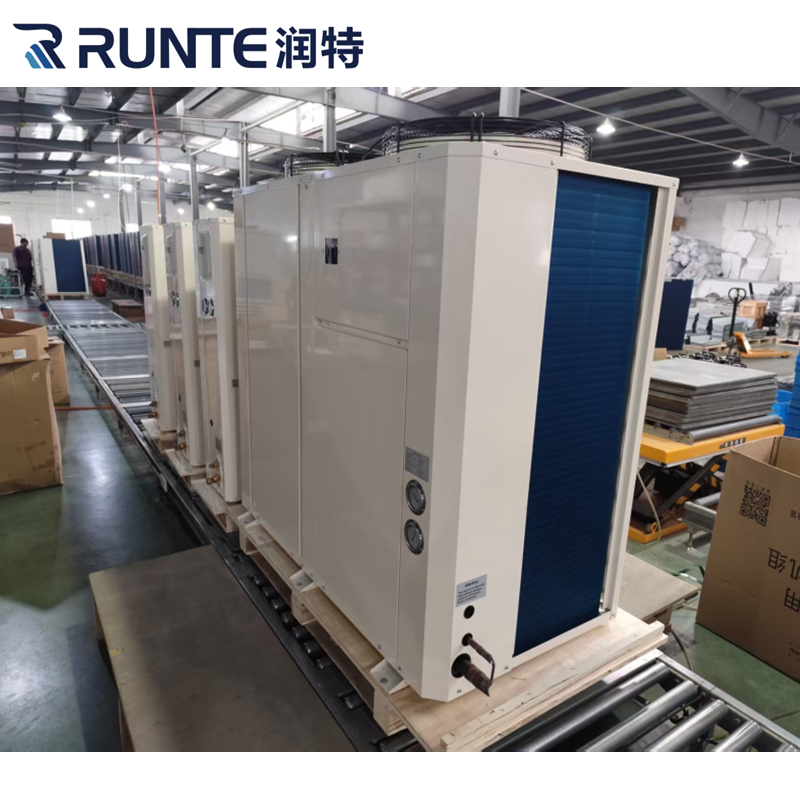

Our Factory

asdadsad18
asdadsad9
asdadsad16
asdadsad19
asdadsad10
asdadsad17

Pre sale-on sale-after sale

asdadsad11

Our Certificate

asdadsad12

Exhibition

asdadsad3
asdadsad7
asdadsad4
asdadsad6
asdadsad5
asdadsad8

Packaging&Shipping

condensing (3)
asdadsad2
asdadsad20 We proudly offer advanced air-cooled scroll compressor units for freezer cabinets, designed and manufactured by leading industry experts. Our company is dedicated to providing high-quality refrigeration solutions for a wide range of applications, including fruits and vegetables, meat, seafood, pharmaceuticals, and frozen foods.

Our refrigeration compressor condensing units are designed to meet the demanding requirements of refrigeration applications. Equipped with advanced air-cooling technology and scroll compressors, they ensure efficient and reliable performance, maintaining the ideal temperature for your valuable products.

Our condensing units are meticulously designed and manufactured to exceptional quality, providing superior cooling capacity while minimizing energy consumption. This not only helps preserve product freshness and quality, but also provides long-term cost savings.

Our refrigeration compressor condensing units are versatile and ideal for a wide range of industries. Whether you’re involved in food processing, pharmaceutical production, or any other industry requiring reliable refrigeration solutions, we have a product that meets your specific needs.

Our condensing units not only offer superior performance but are also easy to install and maintain, saving you time and effort in the long run. Their rugged construction and high-quality components ensure a long-lasting service life, providing you with years of reliable refrigeration solutions.

Our company prides itself on innovation, quality, and customer satisfaction. Our air-cooled scroll compressor condensing units for freezers embody our commitment to providing advanced refrigeration solutions to meet the evolving demands of modern industry.

Choose our refrigeration compressor condensing units and experience the reliability, efficiency, and performance that only a leading manufacturer can provide. Partner with us to meet all your refrigeration needs and help your business reach new heights of success.
